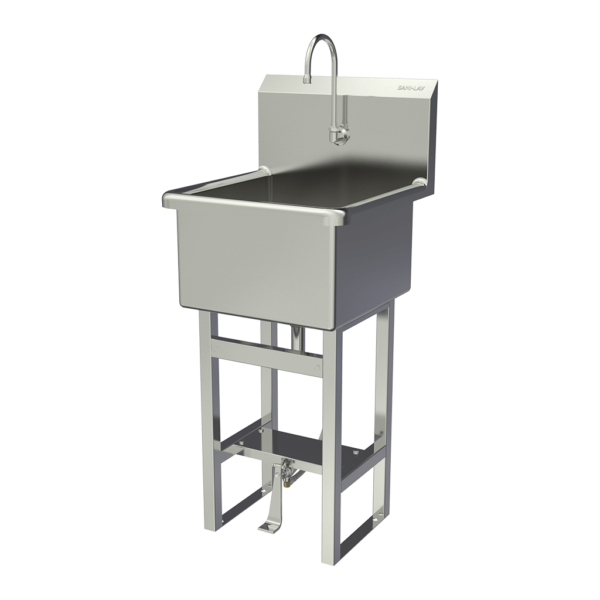

Model U18181

Add to Compare

Low-flow model available

Model U18181-0.5 – 0.5 GPM flow rate

Certified NSF Standard 2 Food Equipment

Built to last using 14-gauge, type 304 stainless steel. Seamless welded construction with a 1-1/2″ rolled rim on front and sides. Exposed surfaces have a uniformed satin finish.

Includes:

(1) Sink Bowl – Model U18181
(1) Leg assembly set
(4) Washers and nuts for connection sink to leg assembly set
(1) Single foot pedal valve (bottom mount) with 2 nuts – Model 106L
(1) Swivel gooseneck spout with aerator – Model 2003L
(1) Connecting tube for valve to spout connection – Model 1007L
(2) Fittings, brass 0.375” male compression and 0.375” male NPT – Model 1008L
(1) Mixing check valve – Model 201L
(1) Strainer assembly with basket – Model 1011

Quick Specs

Outside Dimensions 21″ x 21-1/2″ x 45-1/2″ High
Inside Bowl Size 18″ x 18″ x 12″ Deep
Back Splash Height 8″
Water Activation Single Foot Pedal Valve
Flow Rate 2 GPM
Inlet Connections 3/8″ Male Compression
Drain Opening 3-1/2”
Finish Satin
Strainer Basket Type
Wall Mounting Bracket N/A
