Model 5A5F

Add to Compare

Certified NSF Standard 2 Food Equipment

Ideal for use in the medical and clean room applications. Built to last using 16-gauge, type 304 stainless steel. Exposed surfaces have a satin finish.

Includes:

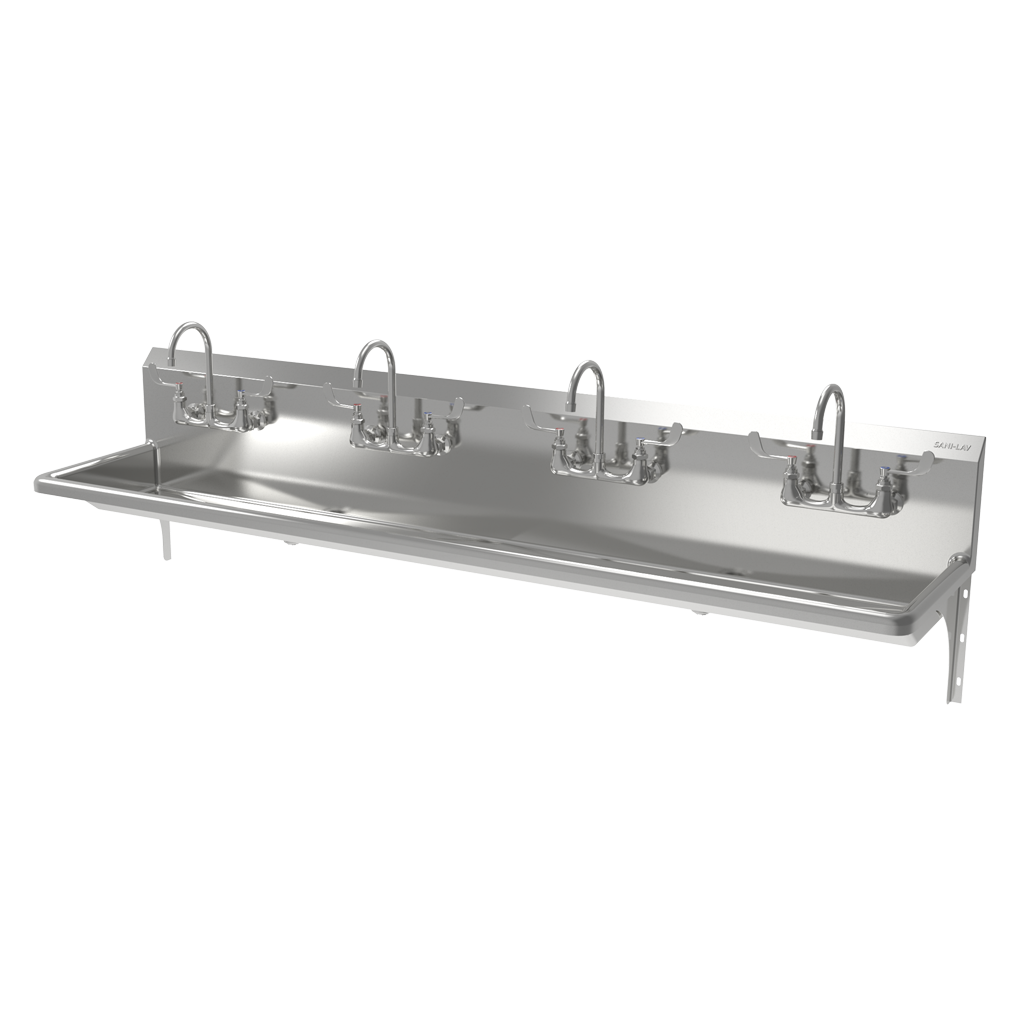

(1) Four-person wall mount wash station – Model 5A5F
(4) 8″ on center faucets – Model 204
(4) Faucet mounting kit – Model SMK
(3) Wall-mounting brackets – Model 1040
(2) Support brackets
(4) Support bracket mounting bolts and washers
(2) Strainer assembly with basket – Model 1010

Quick Specs

Outside Dimensions 88″ x 20″ x 16″ High
Inside Bowl Size 85″ x 16.5″ x 5″ Deep
Back Splash height 10″
Water Activation Manual Faucet with 4″ Handles
Faucet Mounting Center 8″
Faucet Mounting Holes 7/8″
Flow Rate 2 GPM
Inlet Connections 1/2″ Male NPT
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. slip-joint connection
Wall Mounting Bracket 1/4″ Dia. mounting holes
