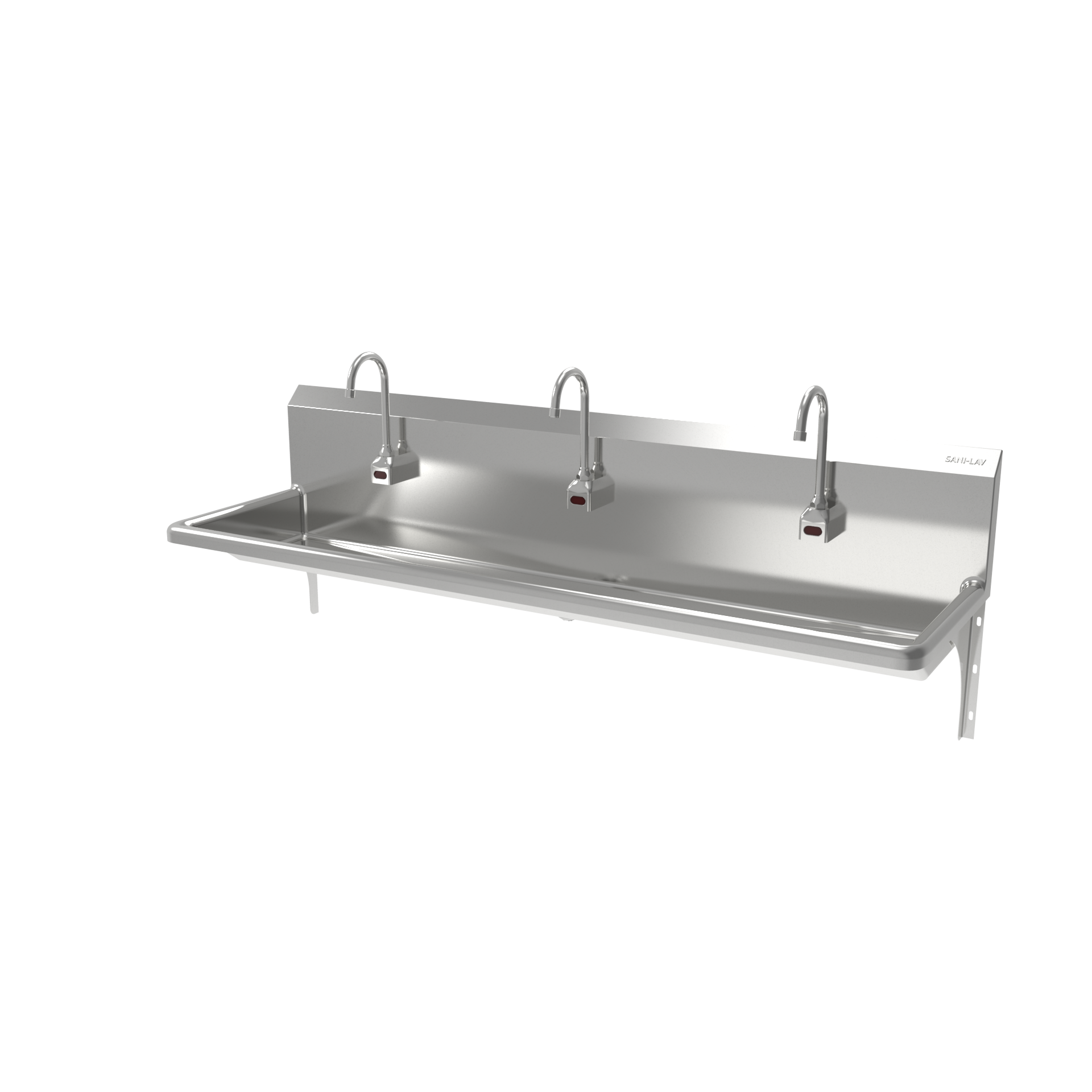

Model 5A3A & 5A3B
Low-flow models available |
| Model 5A3A-0.5 – 0.5 GPM flow rate |
| Model 5A3B-0.5 – 0.5 GPM flow rate |
Certified NSF/ANSI Standard 2 Food Equipment
Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish.
Includes:
(1) Three-person wall mount wash station – Model 5A3A or 5A3B
(2) AC or Battery powered sensor faucet assembly
(2) Wall mounting brackets – Model 1040
(2) Support brackets
(1) Strainer assembly with basket – Model 1010
(2) Mixing check valve – Model 201L
5A3A is AC Powered and 5A3B is Battery Powered.
Quick Specs |
|
| Outside Dimensions | 68″ x 20″ x 15″ High |
| Inside Bowl Size | 65″ x 16-1/2″ x 5″ Deep |
| Back Splash Height | 10″ |
| Water Activation | AC or Battery Powered Sensor Faucet |
| Flow Rate | 2 GPM |
| Inlet Connections | 3/8″ Male Compression |
| Drain Opening | 2″ |
| Finish | Satin |
| Strainer | 1-1/2″ dia. Duo Basket Strainer |
| Wall Mounting Bracket | 1/4″ dia. Mounting Holes |
