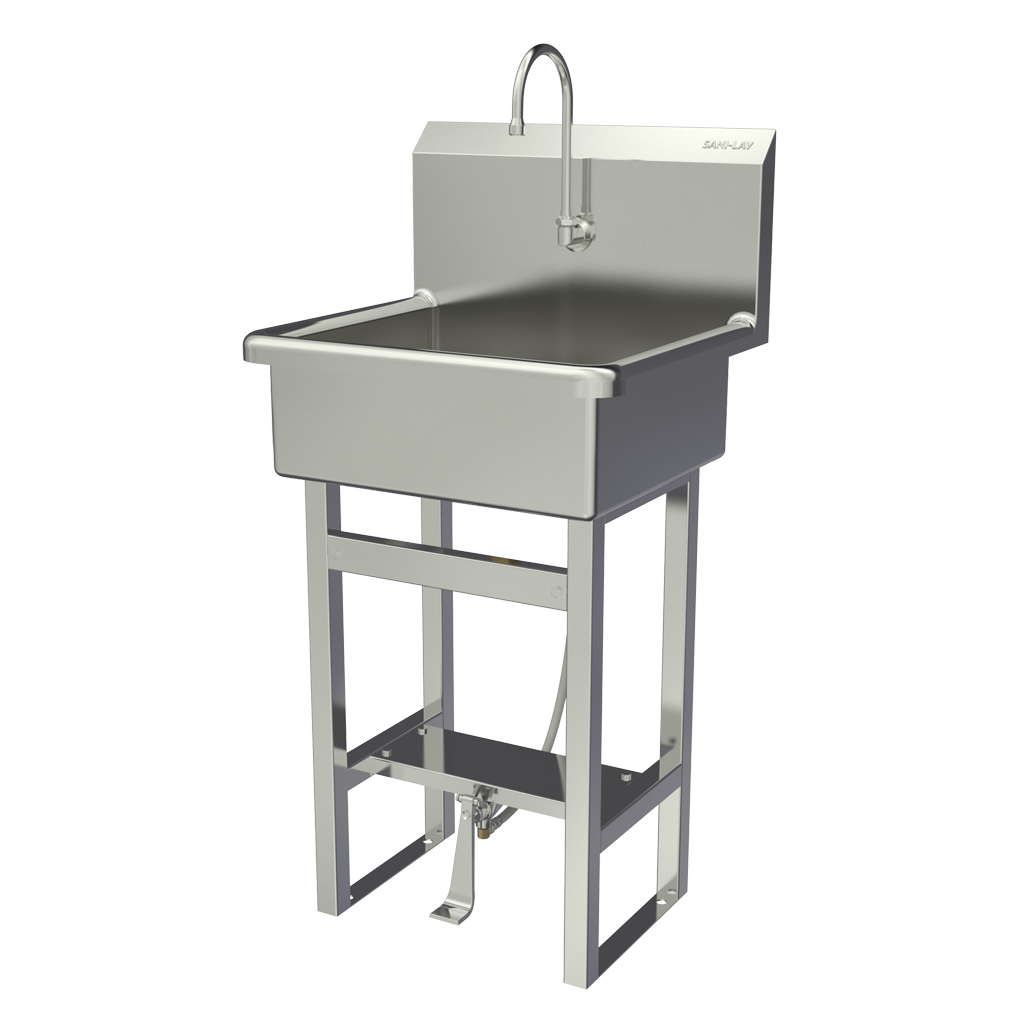

Model 5241

Add to Compare

Low-flow model available

Model 5241-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment

Hands-Free operation is ideal for use in food service applications. Built to last using 16-gauge, type 304 stainless steel. Specially designed foot valves provide easy access to working parts without disconnecting mount or plumbing.

Includes:

(1) Floor mount sink – Model 5241
(1) Single foot pedal valve (bottom mount) with 2 nuts – Model 106L
(1) Swivel gooseneck spout with aerator – Model 2003L
(1) Strainer assembly with basket – Model 1010
(1) Connecting tubes for valve to spout connection – Model 1007L
(2) Fittings, brass, 0.375″ male compression and 0.375″ male NPT – Model 1008L
(1) Mixing check valve – Model 201L

Quick Specs

Outside Dimensions 23″ x 20-1/2″ x 46-1/2″ High
Inside Bowl Size 20″ x 17″ x 9″ Deep
Back Splash Height 10-1/2″
Water Activation Single Foot Pedal Valve
Flow Rate 2 GPM
Inlet Connections 3/8″ Male Compression
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. Duo Basket Strainer
