Model 512W1

Add to Compare

Low-flow model available

Model 512W1-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI Standard 2 Food Equipment and NSF/ANSI 372 low-lead

Constructed from welded #16 gauge type 304 stainless steel. The front, bottom and back are formed from a single sheet with a rolled rim on front and sides. Exposed surfaces have a blended uniform satin finish. Specially designed knee valves provide easy access to working parts without disconnecting mount or plumbing.

Includes:

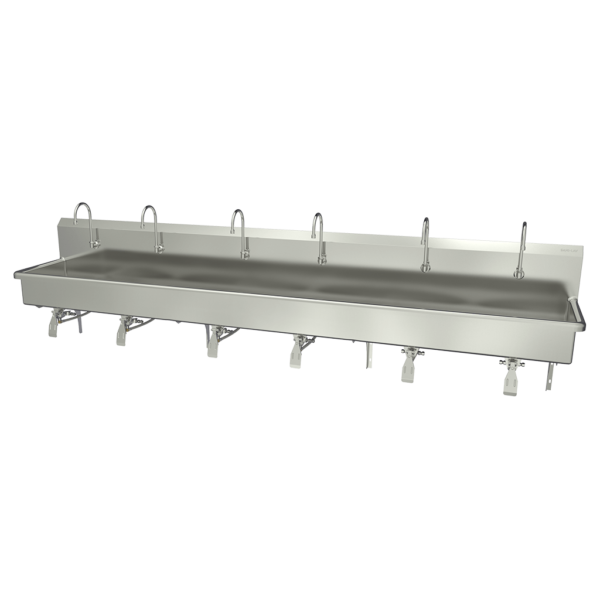

(1) Six-person wall mount wash station – Model 512W1
(6) Single knee pedal valve (bottom mount) with 2 nuts – Model 112L
(6) Swivel gooseneck spout with aerator – Model 2003L
(3) Strainer assembly with basket – Model 1010
(4) Wall-mounting brackets – Model 1044
(4) Support brackets with mounting nuts & washers
(6) Connecting tubes for valve to spout connection – Model 1006L
(12) Fittings, brass, 0.375” male compression and 0.375” male NPT – Model 1008L
(6) Mixing check valve – Model 201L

Quick Specs

Outside Dimensions 120″ x 20″ x 18″ High
Inside Bowl Size 117″ x 16-1/2″ x 8″ Deep
Back Splash Height 10″
Water Activation Single Knee Pedal Valve
Flow Rate 2 GPM
Inlet Connections 3/8″ Male Compression
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. Duo Basket Strainer
Wall Mounting Bracket 1/4″ Dia. Mounting Holes
