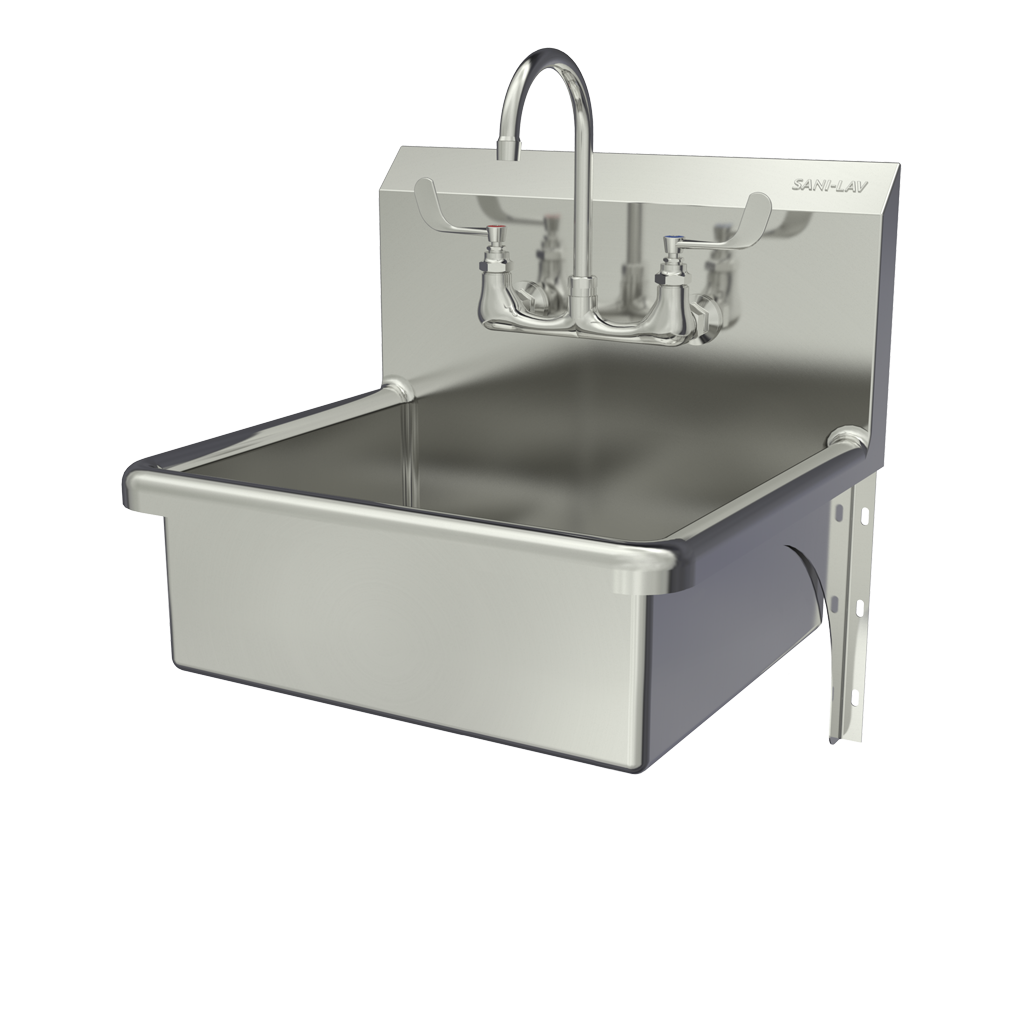

Model 504F

Add to Compare

Low-flow model available

Model 504F-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment

Ideal for use in the medical and clean room applications. Built to last using 16-gauge, type 304 stainless steel. Exposed surfaces have a satin finish.

Includes:

(1) Wall mount sink – Model 504F
(1) 8″ Splash mount faucet with 10″ swivel spout and 4″ wing levers – Model 204
(1) Strainer assembly with basket – Model 1010
(1) Wall-mounting brackets – Model 1040
(2) Support brackets with mounting bolts
(1) Faucet mounting kit – Model SMK

Quick Specs

Outside Dimensions 23″ x 20-1/2″ x 19-1/2″ High
Inside Bowl Size 20″ x 17″ x 9″ Deep
Back Splash Height 10-1/2″
Faucet Mounting Center 8″
Water Activation Manual Faucet with 4″ Handles
Flow Rate 2 GPM
Inlet Connections 1/2″ Male NPT
Drain Opening 2″
Finish Satin
Strainer 1-1/2″ Dia. Duo Basket Strainer
Wall Mounting Bracket 1/4″ Dia. Mounting Holes
