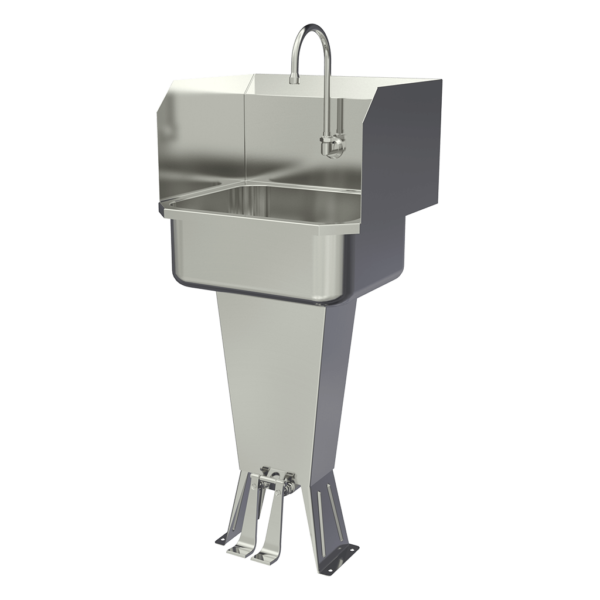

Model 503L

Add to Compare

Low-flow model available

Model 503L-0.5 – 0.5 GPM flow rate

Certified NSF/ANSI 372 low-lead and NSF/ANSI Standard 2 Food Equipment

Hands-Free operation is ideal for use in food service applications. Deep drawn from heavy duty 18 gauge type 304 stainless steel with large rounded corners. Exposed surfaces have an electropolished finish to enhance resistance to corrosion, reduce any bacterial growth and make for easier cleaning. Specially designed foot valves provide easy access to working parts without disconnecting mount or plumbing.

Includes:

(1) Sink bowl – Model 503L
(1) Pedestal base
(1) Set of 6 mounting nuts to attach bowl to pedestal base
(1) Double foot pedal valve (bottom mount) with 2 nuts – Model 105L
(1) Swivel gooseneck spout with aerator – Model 2003L
(1) Connecting tubes for valve to spout connection – Model 1007L
(2) Fittings, brass, 0.375″ male compression and 0.375″ male NPT – Model 1008L
(1) Strainer assembly with basket – Model 1010

Quick Specs

Outside Dimensions 19″ x 18″ x 41-1/2″ High
Inside Bowl Size 17″ x 14″ x 7″ Deep
Back Splash Height 9-1/2″
Side Splash Height 9-1/2″
Water Activation Double Foot Pedal Valve
Flow Rate 2 GPM
Inlet Connections 1/2″ Male NPT
Drain Opening 2″
Finish Electropolished
Strainer 1-1/2″ Dia. Duo Basket Strainer
